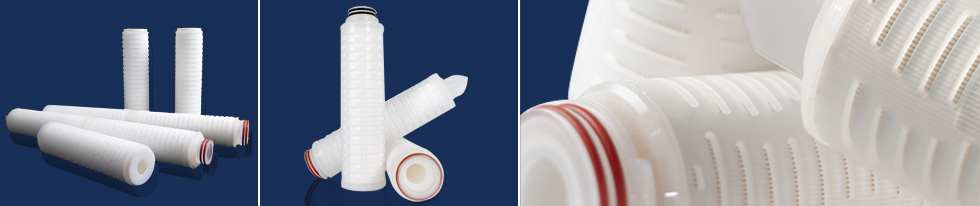

Membrane Cartridge Filter
SP&P PES Membrane Filter features long service life and excellence in filtration efficiency
SP&P PES Membrane Filter is ideal for liquid filtration due to its long service life, high filtration efficiency, and adsorption capacity. Biosafety test has proved that it is safe to use in pre-/post-filtration of beverage, food, and Dl water. it also features high flow rate and low pressure drop with larger filtration area.
Application
- Biological Liquid Clarification
- Recirculating Fluids
- General-Use Water
- Deionized Water Systems
- Chemical Filtration
- Food & Beverage
- Pharmaceutical Intermediate
- Hydrophilic
- Over 99.99% filtration efficiency (ASTM F795 & F838)
- 100% Integrity Test (Diffusion Test)
- Meet USP requirement in biocompatibility physicochemical test
- Sterilizable (Autoclave/ In-Line Steaming)
- Superior Filtration and high Flux
- Thermal Bonding
- Manufactured in Clean Room (Class 1000)
- Low Extractables
- Manufactured at an ISO9001 Registered Facility
- Provide Certificate / Validation Guide available.
Integrity Test Values

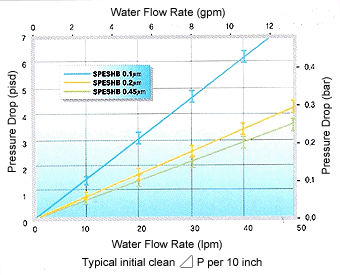

Flow Rate vs. Pressure Drop
Data
|
Item |
Diffusion Test |
Bubble Point Test |
||||
|
Micron Rating
|
0.1um |
0.2um |
0.45um |
0.1um |
0.2um |
0.45um |
Test Pressure |
2760mbar |
2000mbar |
1700mbar |
- |
- |
- |
Test Liquid |
Deionized Water |
Deionized Water |
Deionized Water |
IPA/Water (60/40v/v%) |
Deionized Water |
Deionized Water |
Temperature |
20±2°C |
20±2°C |
20±2°C |
20±2°C |
20±2°C |
20±2°C |
Value |
≤17ml/min |
≤15ml/min |
≤13ml/min |
≥ 2100mbar |
≥ 3800mbar |
≥ 2500mbar |
- Particle retention ratings: 0.1um, 0.2 um, and 4.5um
- Materials of Construction
- Membrane: polypropylene
- Core, Cage & Eng Cap : polypropylene
- AB adapter: PP with encapsulated polysulfone ring
- Support & Drain layer: Polypropylene
- Effective Filtration Area
- 0.55m² (5.9ft²) per 10 inch (General Grade)
- 0.70m² (7.5ft²) per 10 inch (General Grade)
- 0.70m² (7.5ft²) per 10 inch (Biological Grade)
- Operation conditions Maximum Differential Pressure:70psid (5.0bar) at 25°C
45psid (3.0bar) at 80°C - Sterilizable (Autoclave/In-Line Steaming): 30cycles (30min/cycle) at 135°C
- Rinse-up: With 18MΩ-cm ultrapure water (Biological Grade)
- Materials Qualification & Biocompatibility Testing
- Biosafety: Meets the current USP requirements (Class Vl-121°C Plastics (In Vivo))
- Physicochemical Test: Meet the current USP requirements for plastics in Non-volatile Residues, residue on Ignition, Heavy Metal and Buffering Capacity.
- USP Sterile Water for Injection: Meets the current USP requirements in Oxidizable Substances, Particulate Matter and pH.
- Bacterial Endotoxin - USP LAL Test: Meet the current USP requirements (Below 0.25EU/ml)
- Cytotoxicity-USP MEM Test: Meet the current USP requirements (Below 0.25EU/ml)
- Biosafety: Meets the current USP requirements (Class Vl-121°C Plastics (In Vivo))
- Physicochemical Test: Meet the current USP requirements for plastics in Non-volatile Residues, residue on Ignition, Heavy Metal and Buffering Capacity.
- USP Sterile Water for Injection: Meets the current USP requirements in Oxidizable Substances, Particulate Matter and pH.
- Bacterial Endotoxin - USP LAL Test: Meet the current USP requirements (Below 0.25EU/ml)
- Cytotoxicity-USP MEM Test: Meet the current USP requirements (Below 0.25EU/ml)
Division |
Micro Rating |
Length |
End Style |
Media Material |
Protector Material |
Seal (O-ring) |
|
ES: General ESH: General ESHB: General |
0010 0.1um 0020 0.2um 0045 0.45um |
01 250mm 02 500mm 03 750mm 04 1000mm 07 254mm 08 508mm 09 762mm 10 1016mm |
1 DOE 2 226/Cap (lock) 3 222/Cap 5 222/Flat 7 226/Bomb -fin (lock) 8 222/Bomb -fin |
S:Polyeher-sulfone |
1 PP 2 Complex PP 3 High density PE 4 AB adapter: PP encapsulated polysulfone ring |
S Silicon E EPDM N BUNA-N V Viton F Encapsulated Viton |
